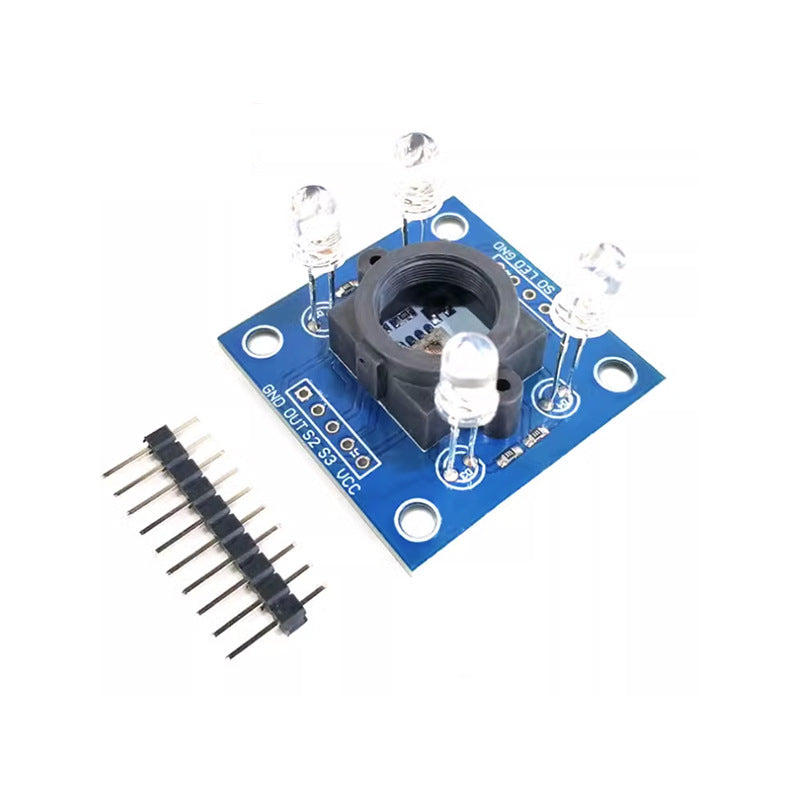

TCS3200 RGB Color Sensor
Pickup currently not available
Shipping
We are an online wholesale platform and shipping costs are charged separately for greater benefit to you.
Air freight costs are based on the weight of the product (including packaging bags and cushioning materials). For products under 2kg, freight is calculated in 50g increments. For products between 2kg and 4kg, freight is calculated in 100g increments. For products over 4kg, freight is calculated in 1kg increments.
If your order exceeds 4kg or the shipping cost exceeds $70, we recommend contacting our customer service for an accurate shipping quote. You will need to provide your zip code address when you contact us.
Air freight options include DHL, UPS, FedEx, and Yun Express, with a delivery time of 7-12 days.
When the weight of the express delivery exceeds 12kg or air shipping cost exceeds US$100 or sea shipping cost exceeds US$50, you can choose B2B shipping:
Air freight(10-14 days)
Yun quik boat sea freight (15-20 days)
Quik boat sea freight(20-25 days).
Air freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$7.5/kg + US$2 | 10-15 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$8.5/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$9.0/kg + US$2 | ||
Yun quit boat sea freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$3.4/kg + US$2 | 15-20 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$3.6/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$3.8/kg + US$2 | ||
Quit boat sea freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$2.6/kg + US$2 | 20-25 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$2.8/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$3.0/kg + US$2 | ||
Processing starts after your payment confirmed. Normally, it needs 2-5 days. The processing time depends on the quantity of items.
Color Sensor Principle
The TCS3200 uses an 8-pin SOIC surface mount package, integrating 64 photodiodes on a single chip. These photodiodes are divided into four types: 16 photodiodes with red filters; 16 with green filters; 16 with blue filters; and the remaining 16 without any filters, allowing all light information to pass through. These photodiodes are arranged in a staggered pattern within the chip, minimizing the non-uniformity of incident light radiation and thus increasing color recognition accuracy. Furthermore, the 16 photodiodes of the same color are connected in parallel, evenly distributed in the diode array, eliminating color position errors. During operation, the desired filter is dynamically selected via two programmable pins. The sensor's typical output frequency range is from 2 Hz to 500 kHz. Users can also select a 20% or 2% output scaling factor, or a power-off mode, via the two programmable pins. The output scaling factor allows the sensor's output to adapt to different measurement ranges, improving its adaptability. For example, when using a low-speed frequency counter, a small scaling value can be selected to match the output frequency of the TCS3200 with the counter.
1. Power supply: 3-5V
2. Anti-light interference
3. White LED, controllable on/off state.
4. Can be used to illuminate objects of different colors.
5. PCB dimensions: (L) 33mm * (W) 25mm
