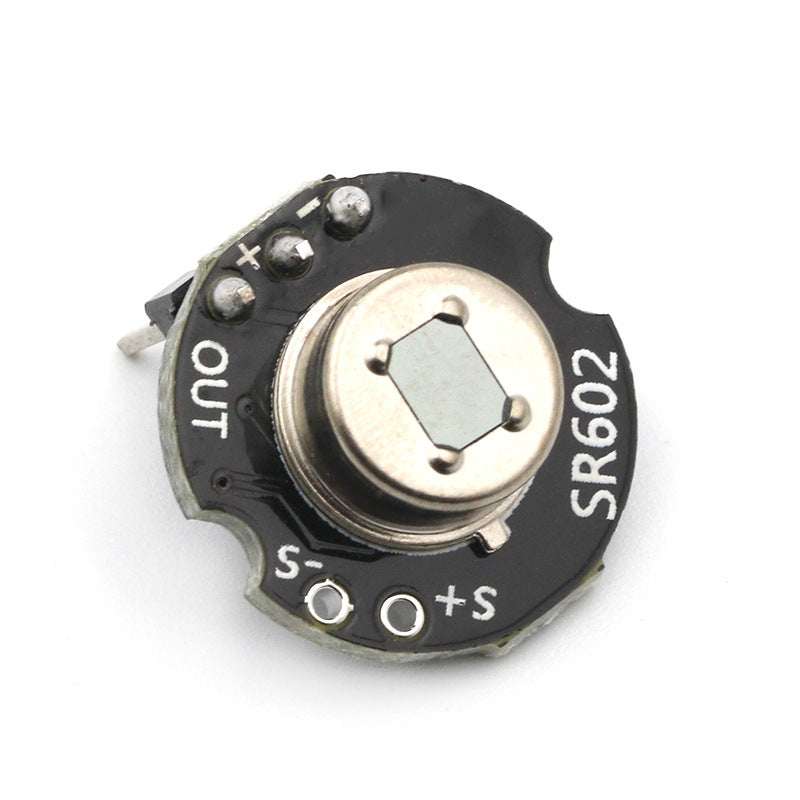

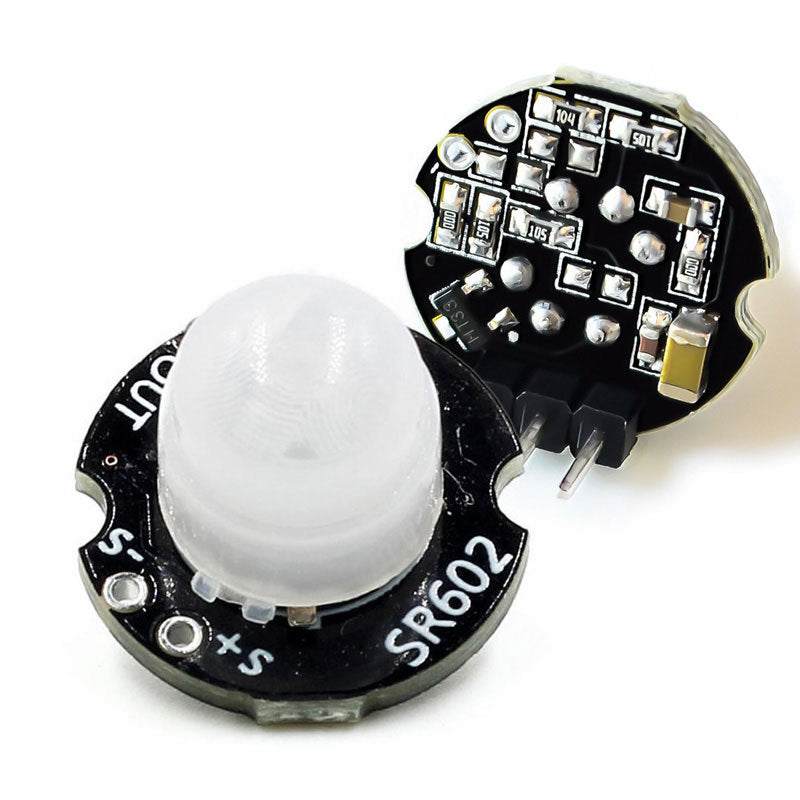

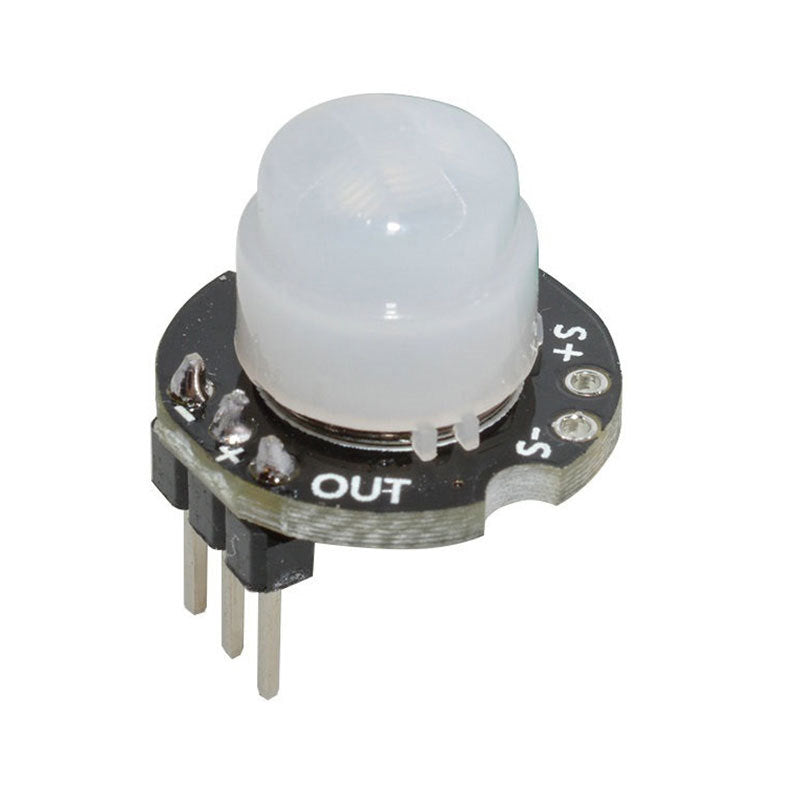

SR602 Human Presence Sensor Human Infrared
Pickup currently not available
Shipping
We are an online wholesale platform and shipping costs are charged separately for greater benefit to you.
Air freight costs are based on the weight of the product (including packaging bags and cushioning materials). For products under 2kg, freight is calculated in 50g increments. For products between 2kg and 4kg, freight is calculated in 100g increments. For products over 4kg, freight is calculated in 1kg increments.
If your order exceeds 4kg or the shipping cost exceeds $70, we recommend contacting our customer service for an accurate shipping quote. You will need to provide your zip code address when you contact us.
Air freight options include DHL, UPS, FedEx, and Yun Express, with a delivery time of 7-12 days.
When the weight of the express delivery exceeds 12kg or air shipping cost exceeds US$100 or sea shipping cost exceeds US$50, you can choose B2B shipping:
Air freight(10-14 days)
Yun quik boat sea freight (15-20 days)
Quik boat sea freight(20-25 days).
Air freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$7.5/kg + US$2 | 10-15 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$8.5/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$9.0/kg + US$2 | ||
Yun quit boat sea freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$3.4/kg + US$2 | 15-20 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$3.6/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$3.8/kg + US$2 | ||
Quit boat sea freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$2.6/kg + US$2 | 20-25 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$2.8/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$3.0/kg + US$2 | ||
Processing starts after your payment confirmed. Normally, it needs 2-5 days. The processing time depends on the quantity of items.
This SR602 module features high sensitivity, fast response, low static power consumption, compact size, and easy installation. It comes pre-installed with a lens and soldered pin headers; no adjustments are required once the power supply is connected. It can be used in motion-sensor lights, alarms, security systems, access control systems, on-demand video recording, and automated equipment in agriculture, forestry, and mining.
Key Points
1. The high-level output time of this product is adjustable from 2.5 seconds to 1 hour. The factory default output time is 2.5 seconds. To change this, replace one surface-mount resistor. Please refer to the relevant table below for typical delay times and their corresponding resistor values.
2. Lockout time: 2 seconds, not adjustable.
3. Factory-defined as retrievable, cannot be changed.
4. The module's supply voltage is 3.3V to 15V, and the maximum voltage is 2.8V to 18V.
5. The module's output timing is: after power-on, it outputs a high level for 2 seconds, then transitions to a low level, entering standby mode. Changing the delay time will increase the high-level output time after power-on, effectively increasing the startup time to normal operation.
6. With the photosensitive element installed, it does not work during the day but works at night; without the photosensitive element, it works all day (the default is that no photosensitive element is installed).
7. This module is very sensitive. Pay attention to the installation location and try to avoid heat sources and radiation sources (air vents/direct sunlight).
Parameters
Sensing distance: Maximum 5 meters; Recommended 0-3.5 meters.
Output: High level, H = 3.3V, L = 0V
Power supply DC: 3.3V-15V
Quiet current: 20uA
