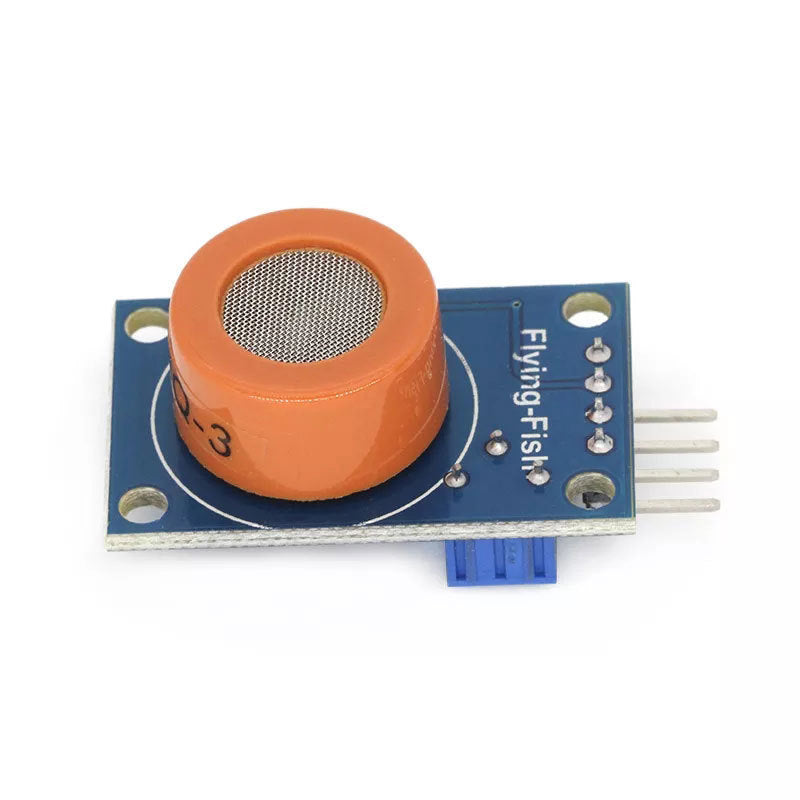

MQ3 Alcohol Sensor
Pickup currently not available
Shipping
We are an online wholesale platform and shipping costs are charged separately for greater benefit to you.
Air freight costs are based on the weight of the product (including packaging bags and cushioning materials). For products under 2kg, freight is calculated in 50g increments. For products between 2kg and 4kg, freight is calculated in 100g increments. For products over 4kg, freight is calculated in 1kg increments.
If your order exceeds 4kg or the shipping cost exceeds $70, we recommend contacting our customer service for an accurate shipping quote. You will need to provide your zip code address when you contact us.
Air freight options include DHL, UPS, FedEx, and Yun Express, with a delivery time of 7-12 days.
When the weight of the express delivery exceeds 12kg or air shipping cost exceeds US$100 or sea shipping cost exceeds US$50, you can choose B2B shipping:
Air freight(10-14 days)
Yun quik boat sea freight (15-20 days)
Quik boat sea freight(20-25 days).
Air freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$7.5/kg + US$2 | 10-15 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$8.5/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$9.0/kg + US$2 | ||
Yun quit boat sea freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$3.4/kg + US$2 | 15-20 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$3.6/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$3.8/kg + US$2 | ||
Quit boat sea freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$2.6/kg + US$2 | 20-25 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$2.8/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$3.0/kg + US$2 | ||
Processing starts after your payment confirmed. Normally, it needs 2-5 days. The processing time depends on the quantity of items.
The MQ-3 gas sensor uses tin dioxide (SnO2), a gas-sensitive material with low conductivity in clean air. When alcohol vapor is present in the sensor's environment, the sensor's conductivity increases with increasing alcohol concentration. A simple circuit converts this conductivity change into an output signal corresponding to the gas concentration. The MQ-3 gas sensor has high sensitivity to alcohol and is resistant to interference from gasoline, smoke, and water vapor. This sensor can detect various concentrations of alcohol and is a low-cost sensor suitable for a variety of applications.
Alcohol (ethanol) detection is used for on-site detection of drivers and other personnel prohibited from working under the influence of alcohol, as well as for detecting ethanol vapor in other locations.
Module Features:

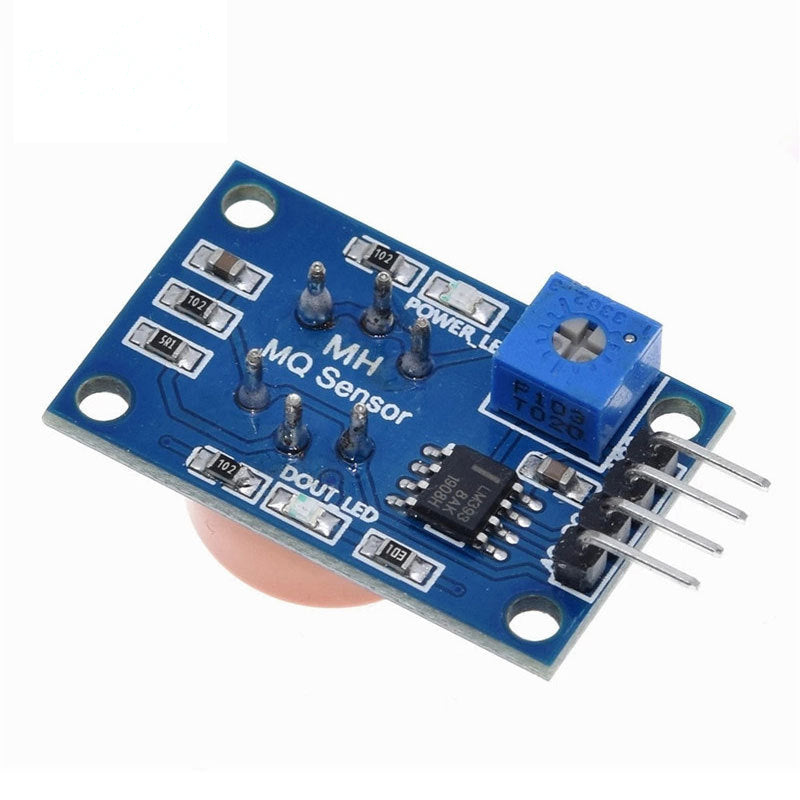

1. High-quality double-sided panel design with power indicator and TTL signal output indicator;
2. DO switch signal (TTL) output and AO analog signal output;
3. TTL output valid signal is low level. (The indicator light illuminates when the output is low, allowing direct connection to a microcontroller or relay module.)
4. Analog output voltage; the higher the concentration, the higher the voltage.
5. Good sensitivity for alcohol detection.
6. Four screw holes for easy positioning;

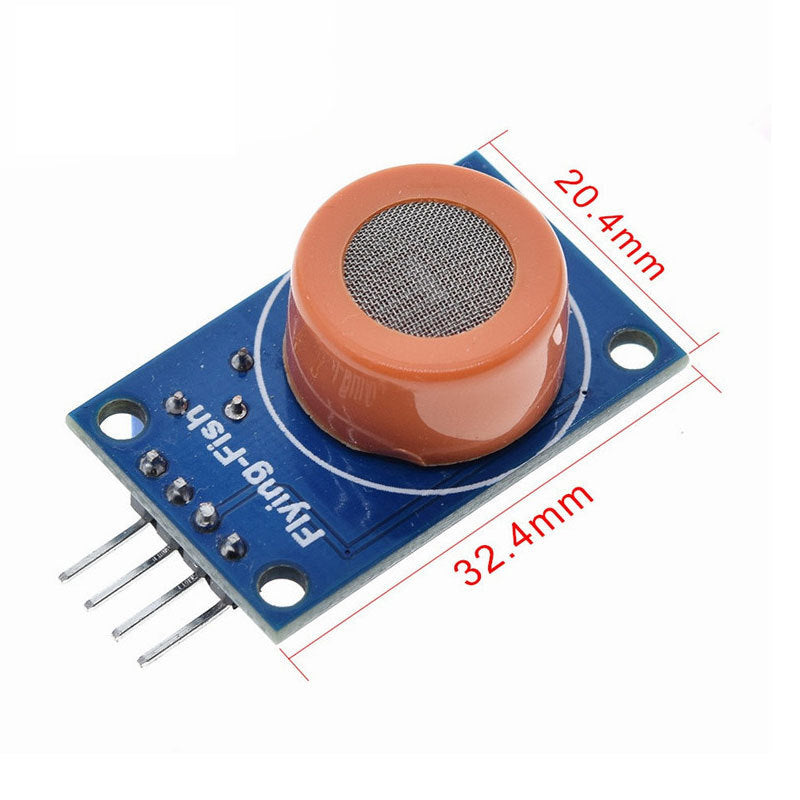

7. Product dimensions: 32(L)*20(W)*22(H)
8. Long service life and reliable stability
9. Fast response and recovery characteristics
Electrical Performance:
Input Voltage: DC5V
Power Consumption (Current): 150mA
DO Output: TTL digital 0 and 1 (0.1 and 5V)
AO Output: 0.1-0.3V (relatively pollution-free), maximum concentration voltage around 4V
Special Reminder: After powering on, the sensor needs to warm up for about 20 seconds for the measured data to stabilize. Sensor heating is normal due to the internal heating element; if it becomes too hot to touch, it is abnormal.
Gas: Alcohol (ethanol)
Detection Range: 10～1000ppm alcohol
Characteristic Gas: 125ppm alcohol
Sensitivity: R in air/Rin typical gas≥5
Sensitive Element Resistance: 1～20KΩ in air
Response Time: ≤10s (70% Response)
Recovery Time: ≤30s (70% Response)
Heating Resistance: 31Ω±3Ω
Heating Current: ≤180mA
Heating Voltage: 5.0V±0.2V
Heating Power: ≤900mW
Measurement Voltage: ≤24V
Operating Conditions:
Ambient Temperature: -20℃～+55℃
Humidity: ≤95%RH
Ambient Oxygen Content: 21%
Storage Conditions:
Temperature: -20℃～+70℃
Humidity: ≤70%RH
Wiring Method:
1. VCC: Connect to the positive power supply (5V)
2. GND: Connect to the negative power supply
3. DO: TTL switch signal output
4. AO: Analog signal output
