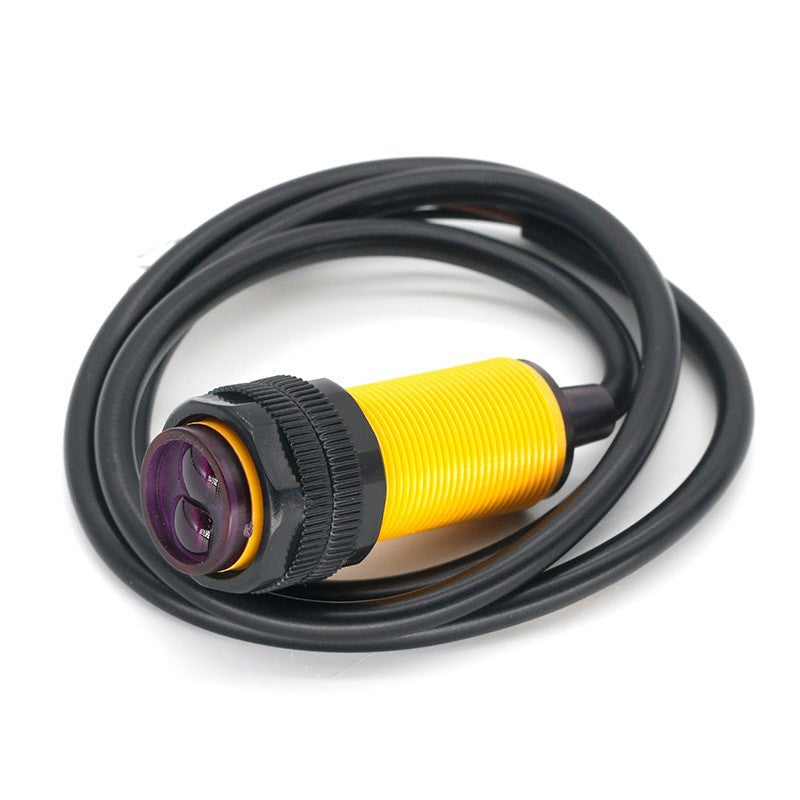

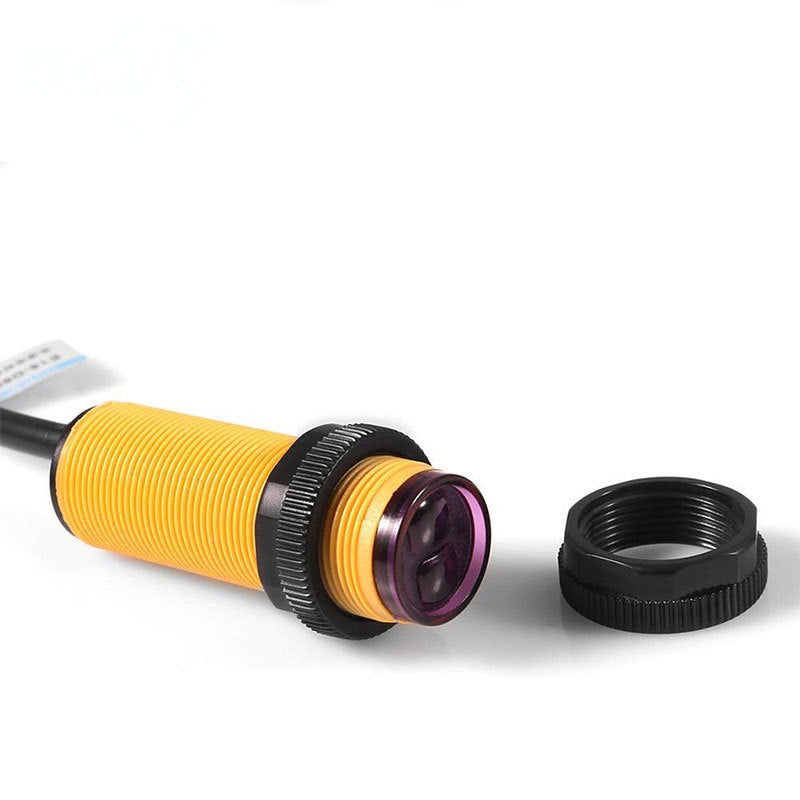

E18-D80NK Infrared Obstacle Sensor Obstacle Avoidance Sensor
Pickup currently not available
Shipping
We are an online wholesale platform and shipping costs are charged separately for greater benefit to you.
Air freight costs are based on the weight of the product (including packaging bags and cushioning materials). For products under 2kg, freight is calculated in 50g increments. For products between 2kg and 4kg, freight is calculated in 100g increments. For products over 4kg, freight is calculated in 1kg increments.
If your order exceeds 4kg or the shipping cost exceeds $70, we recommend contacting our customer service for an accurate shipping quote. You will need to provide your zip code address when you contact us.
Air freight options include DHL, UPS, FedEx, and Yun Express, with a delivery time of 7-12 days.
When the weight of the express delivery exceeds 12kg or air shipping cost exceeds US$100 or sea shipping cost exceeds US$50, you can choose B2B shipping:
Air freight(10-14 days)
Yun quik boat sea freight (15-20 days)
Quik boat sea freight(20-25 days).
Air freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$7.5/kg + US$2 | 10-15 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$8.5/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$9.0/kg + US$2 | ||
Yun quit boat sea freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$3.4/kg + US$2 | 15-20 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$3.6/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$3.8/kg + US$2 | ||
Quit boat sea freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$2.6/kg + US$2 | 20-25 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$2.8/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$3.0/kg + US$2 | ||
Processing starts after your payment confirmed. Normally, it needs 2-5 days. The processing time depends on the quantity of items.
This is a photoelectric sensor that integrates transmission and reception. The detection distance can be adjusted according to requirements. This sensor features long detection distance, low susceptibility to visible light interference, low cost, ease of assembly, and convenient use, and can be widely used in many applications such as robot obstacle avoidance and assembly line piece counting.
When there are no obstacles in front, the output is high. When there is an obstacle, the output (yellow) will change from high to low. There is a potentiometer on the back that adjusts the obstacle detection distance. Once the potentiometer is adjusted (e.g., a distance of 60cm), a low level will be output if an obstacle is within the effective range (e.g., an obstacle at 40cm, an obstacle at 10cm), which is just enough for the microcontroller to recognize.
In the circuit design, a 10K pull-up resistor can be added to the yellow output wire to bring it to 5V before connecting it to the microcontroller for detection, which will result in a more stable circuit. If random detection is used, external hardware interrupts such as INT0 and INT1 of the microcontroller can be used.
Parameters
1. Output Current (DC/SCR/Relay Control output): 100mA/5V power supply
2. Current Consumption (DC < 25mA)
3. Response Time: < 2ms
4. Pointing Angle: ≤ 15°, Effective Distance Adjustable from 3-80CM
5. Detectable Object: Transparent or Opaque
6. Operating Ambient Temperature: -25℃~+55℃
7. Standard Detectable Objects: Sunlight below 10000LX, Incandescent Lamp below 3000LX
8. Housing Material: Plastic
Dimensions
Diameter: 17MM
Sensor Length: 45MM
Lead Wire Length: 45CM
