This module can be used in applications where the input voltage is higher than the output voltage, such as batteries, power transformers, DIY adjustable voltage regulators, 24V car laptop power supplies, car LED strip power supplies, industrial equipment step-down converters, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, etc.
Module Parameters
Module Name: 12A Step-Down Version
Module Type: Non-isolated Step-Down Module (BUCK)
Input Voltage: 4.5-30V Please do not exceed 30V when inputting the voltage!
Output Voltage: 0.8-30V continuously adjustable (default output 5V)
Output Current: 0-12A 100W, up to 200W with enhanced heat dissipation
Operating Temperature: -40~+85 degrees Celsius
Operating Frequency: 300KHz
Conversion Efficiency: High 95% (efficiency depends on input/output voltage, current, and voltage difference)
Short Circuit Protection: Yes (limited current 14A). Please avoid short circuits.
Over-Temperature Protection: Yes (automatic output shutdown upon over-temperature).
Input Reverse Connection Protection: None (if required, insert a diode in series with the input).
Mounting Method: 4 x 3mm screws
Wiring Method: Terminal blocks, solderless, V-IN for input, V-OUT for output. Modules with housings use wire-bonded outputs.

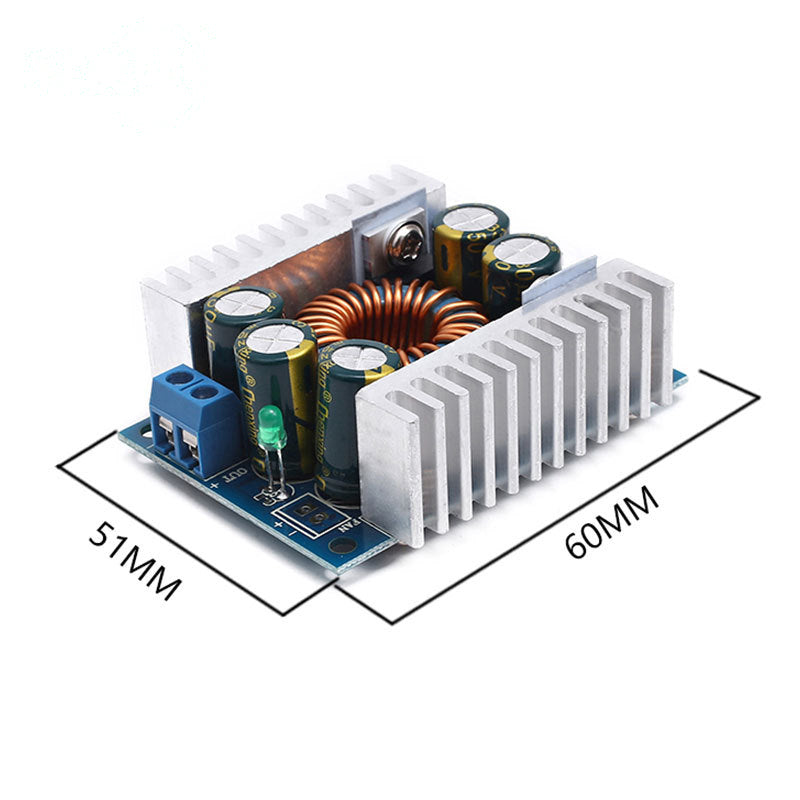

Module Dimensions: 60mm (L), 51mm (W), 22mm (H)
Measured Data
Input 12V, Output 5V/10A, Efficiency 81%
Input 12V, Output 5V/6A, Efficiency 86%
Input 24V, Output 12V/8A, Efficiency 91%
Input 24V, Output 19V/6A, Efficiency 94%
