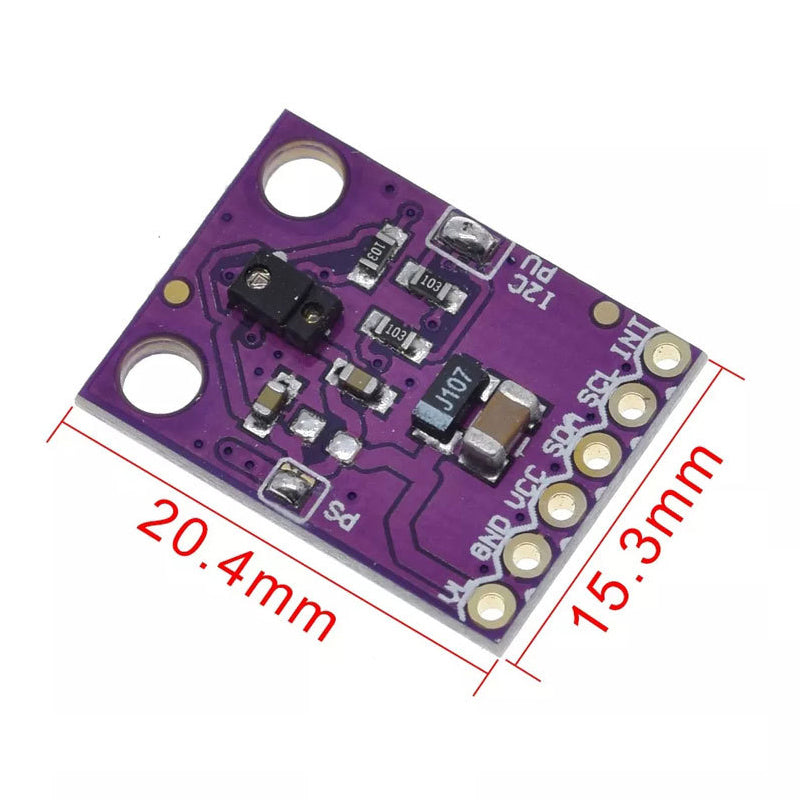

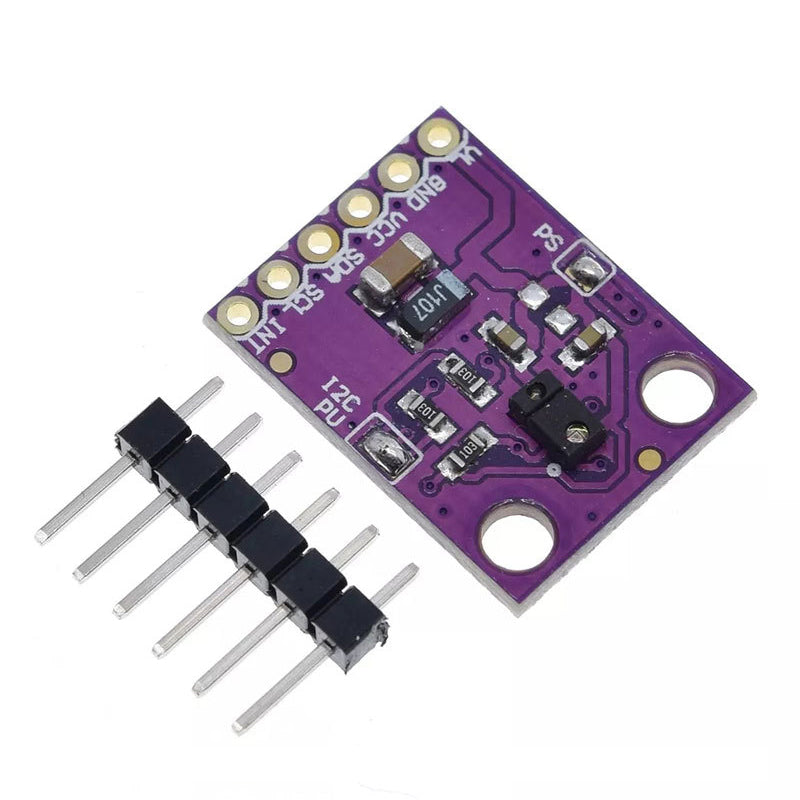

APDS-9960 Gesture Sensor Infrared Hand Movement Recognition
Pickup currently not available
Shipping
We are an online wholesale platform and shipping costs are charged separately for greater benefit to you.
Air freight costs are based on the weight of the product (including packaging bags and cushioning materials). For products under 2kg, freight is calculated in 50g increments. For products between 2kg and 4kg, freight is calculated in 100g increments. For products over 4kg, freight is calculated in 1kg increments.
If your order exceeds 4kg or the shipping cost exceeds $70, we recommend contacting our customer service for an accurate shipping quote. You will need to provide your zip code address when you contact us.
Air freight options include DHL, UPS, FedEx, and Yun Express, with a delivery time of 7-12 days.
When the weight of the express delivery exceeds 12kg or air shipping cost exceeds US$100 or sea shipping cost exceeds US$50, you can choose B2B shipping:
Air freight(10-14 days)
Yun quik boat sea freight (15-20 days)
Quik boat sea freight(20-25 days).
Air freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$7.5/kg + US$2 | 10-15 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$8.5/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$9.0/kg + US$2 | ||
Yun quit boat sea freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$3.4/kg + US$2 | 15-20 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$3.6/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$3.8/kg + US$2 | ||
Quit boat sea freight B2B express |
|||
| US Area | Unit Price | Date | Last-mile Delivery |
| Western United States (zip codes starting with 8 or 9) |
US$2.6/kg + US$2 | 20-25 days | UPS / FEDEX / GOFO |
| Central United States (zip codes starting with 4, 5, 6, or 7) |
US$2.8/kg + US$2 | ||
| Eastern United States (zip codes starting with 0, 1, 2, or 3) |
US$3.0/kg + US$2 | ||
Processing starts after your payment confirmed. Normally, it needs 2-5 days. The processing time depends on the quantity of items.
The APDS-9960 is an optical module and ambient light sensor integrating ALS, infrared LED, and proximity detector for ambient light sensing (ALS). It uses dual photodiodes to approximate illuminance levels up to 0.01 lux, closely mimicking human visual response. It features programmable interrupt functionality with upper and lower thresholds, up to 16-bit resolution, and high flexibility even behind dark glass. The fully calibrated proximity sensor can detect objects up to 100 mm in diameter, eliminating the need for factory calibration of end devices and sub-components. The ambient light dynamic range has been increased from over 10K lux to 30K lux, and the sunlight calibration range has been significantly improved to 50K lux, greatly enhancing sensitivity and avoiding strong light interference. It can operate accurately with an air gap as small as 1.0 mm without external isolation, greatly simplifying customer structural designs. Its standby power consumption is 90μA typical, and sleep mode power consumption is 2.2μA typical, resulting in greater energy savings. A dedicated interrupt pin up to 400kHz (I2C fast mode) provides I2C interface compatibility. The fully integrated solution simplifies structural and circuit design, promising a better design experience and product value for users!
The built-in APDS-9960 sensor provides ambient light and color measurement, proximity detection, and non-contact gesture detection. With this RGB and gesture sensor, you can control a computer, microcontroller, or robot—far more powerful than a simple card swipe! In fact, the APDS-9960 gesture sensor was used in the Samsung Galaxy S5.
Applicable to ambient light and RGB color sensing, proximity detection, and gesture detection.
With four infrared sensors, you can measure the change in light reflectivity over time at each basic location and convert these changes into gestures. Our UI library can detect directional gestures (from left to right, from right to left, from top to bottom, from bottom to top), but theoretically more complex gestures, such as zigzags, clockwise or counterclockwise circles, and near-to-far gestures, can also be implemented.
Product Specifications
Operating Voltage: 3.3V
Measuring Range: 4-8in (10-20CM)

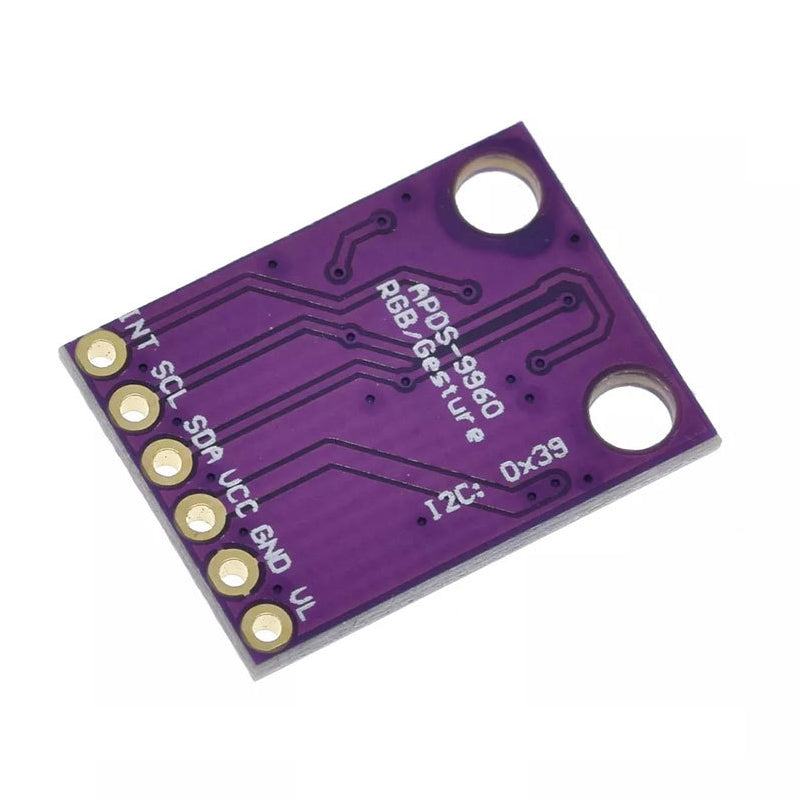

Interface Type: I2C Interface
INT: Interrupt Output
SCL: I2C Clock Port
SDA: I2C Data Port
VCC: Positive Power Input, connect 2.4V-3.6V (3.3V recommended)
GND: Negative Power Input
VL: External IR LED Power Supply. Must be 3.0-4.5V
