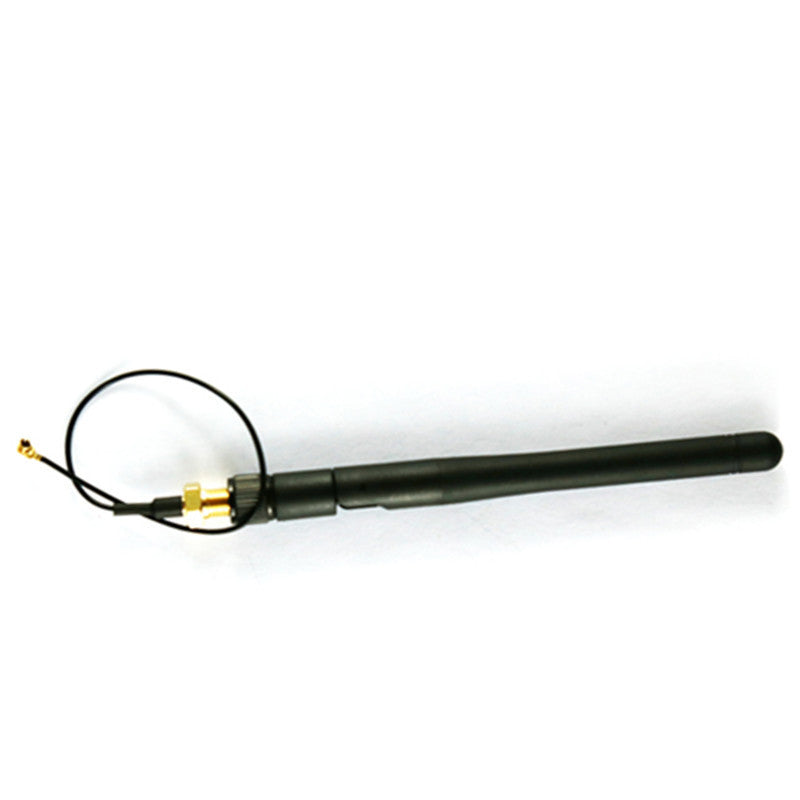

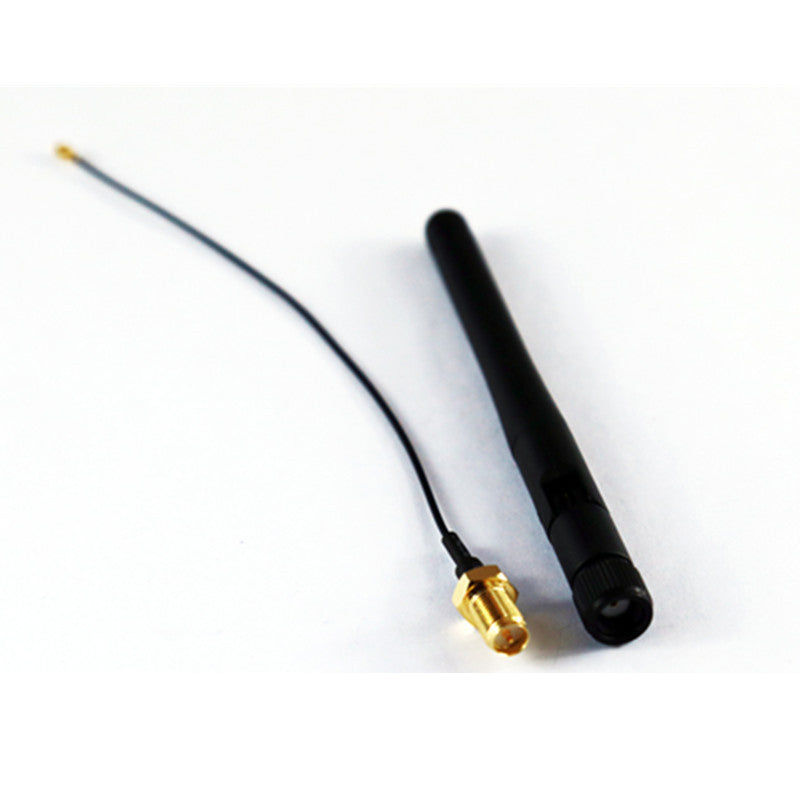

2.4G WiFi Module with External Antenna

Name: 2.4G Omnidirectional Antenna
Frequency Band: 2400-2500MHz

Electrical Specifications
Frequency Range (MHz): 2400-2500MHz
Gain (dBi): >2.5
VSWR: <1.5
Polarization: Vertical
Non-Circularity (dB): ±0.5dB
Input Impedance (Ω): 50Ω
Lightning Protection: Direct Ground
Maximum Input Power (W): 50W

Mechanical Specifications
Connector Type: SMA
Radiating Element Material: Copper
Radiome Material: EVA
Radiome Color: Gray
Antenna Dimension (mm): 110 (Unbend), 92 (Bend)
Tail Cable Length (mm): 100/120/200
Packing Size (mm) 295×110×60 mm
Weight (Kg): 0.009/12
Application Condition (Indoor):
Operating Temperature (°C): -40~+70°C
Reposition Temperature (°C): -55~+80°C
