ESP-07S ESP8266 Serial to WiFi Module

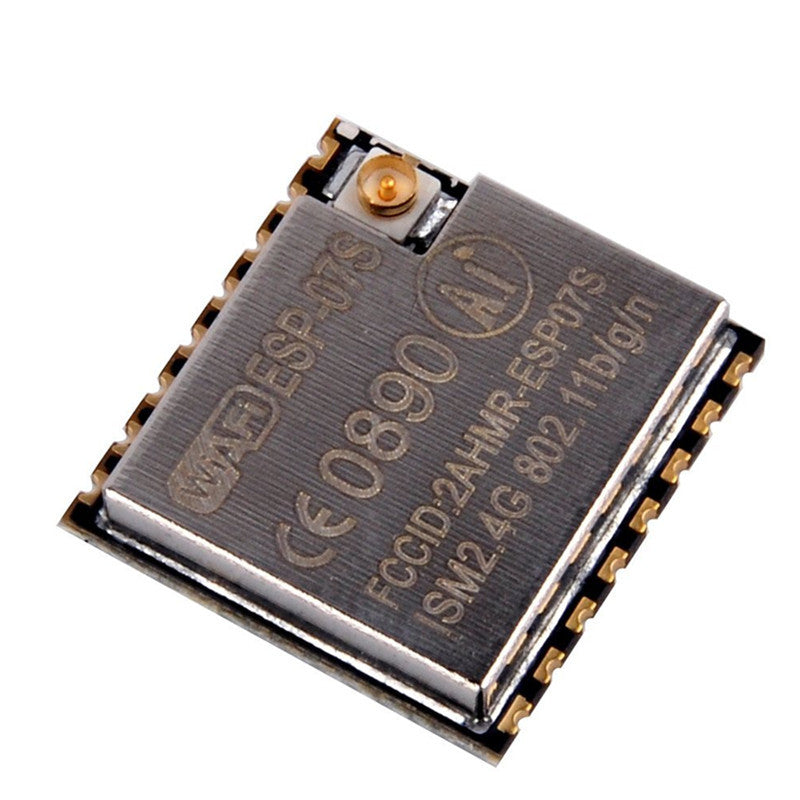

The ESP-07S WiFi module's core processor, the ESP8266, integrates a Tensilica L106 ultra-low-power 32-bit micro MCU in a small package. It features a 16-bit reduced mode, supports 80 MHz and 160 MHz clock speeds, supports RTOS, and integrates Wi-Fi MAC/BB/RF/PA/LNA, along with an onboard antenna. It is FCC, CE, and RoHS certified, uses a half-hole surface mount process, has all I/O pins exposed, a metal shielded housing, and can be connected to an external IPX antenna.

This module supports standard IEEE 802.11 b/g/n protocols and a complete TCP/IP protocol stack. Users can use this module to add networking capabilities to existing devices or build a standalone network controller. The ESP8266 is a high-performance wireless SoC that provides limitless possibilities for embedding WiFi functionality into other systems at minimal cost.

Product Features
• 802.11 b/g/n
• Built-in Tensilica L106 ultra-low power 32-bit micro MCU, supporting 80 MHz and 160 MHz clock speeds, RTOS supported
• Built-in 10-bit high-precision ADC
• Built-in TCP/IP protocol stack
• Built-in TR switch, balun, LNA, power amplifier, and matching network
• Built-in PLL, regulator, and power management components, +20 dBm output power in 802.11b mode
• A-MPDU and A-MSDU aggregation and 0.4 s guard interval
• WiFi @ 2.4 GHz, supporting WPA/WPA2 security modes
• Supports AT remote upgrade and cloud OTA upgrade
• Supports STA/AP/STA+AP operating modes
• Supports Smart Config function (including Android and iOS devices)
• HSPI UART, I2C, I2S, IR Remote Control, PWM, GPIO
• Deep sleep hold current is 10 uA, shutdown current is less than 5 uA
• Wake up, connect, and transmit data packets within 2 ms
• Standby power consumption is less than 1.0 mW (DTIM3)
• Operating temperature range: -40℃ to 125℃
